Specs

Frameset

  • Frame
    Alvas High Performance Alloy,unisex frame,internal cable routing,135x10mm forged dropouts, post-mount disc, replaceable alloy derailleur hanger
  • Seat Binder
    Alvas Alloy quick release clamp 31.8mm

SUSPENSION

  • Fork
    Alvas Suspension,Alloy,post-mount disc,QR

Brakes

  • Front Brake
    Shimano,BR-MT200,Hydraulic disc,160mm rotor
  • Rear Brake
    Shimano,BR-MT200,Hydraulic disc,160mm rotor

Drivetrain

  • Shift Levers
    Shimano,KSLM4100 1x10-Speeds
  • Rear Derailleur
    Shimano,RD-M4120
  • Cassette
    Sunshine,CS-HR10，11-36T
  • Chain
    KMC
  • Crankset
    Alvas,36T, Alloy Crank 170mm
  • Bottom Bracket
    Threaded BB

WHEELS & TIRES

  • Rims
    Alvas Alloy Double Wall Rim,21mm inner width
  • Front Hub
    Joytech Alloy,Disc,9x100mm, 6-Bolt
  • Rear Hub
    Joytech Alloy,Disc,10x135mm, Cassettle,6-Bolt
  • Spokes
    45#, 14G
  • Front Tire
    Chaoyang,27.5*2.1
  • Rear Tire
    Chaoyang,27.5*2.1
  • Inner Tubes
    Butyl rubber Tube

COCKPIT

  • Handlebars
    Alvas Alloy Performance Bar,31.8mm
  • Stem
    Alvas Alloy Performance Stem,31.8mm
  • Grips
    Rubber 130mm
  • Saddle
    Alvas Fit Comfort Saddle
  • SeatPost
    Alvas Performance Post,Alloy, 1-bolt, clamp, 27.2mm

ACCESSORIES

  • Pedals
    Wellgo Alloy Pedals,DU System

Please note that, based on component availability and other factors, specifications are subject to change without notice.

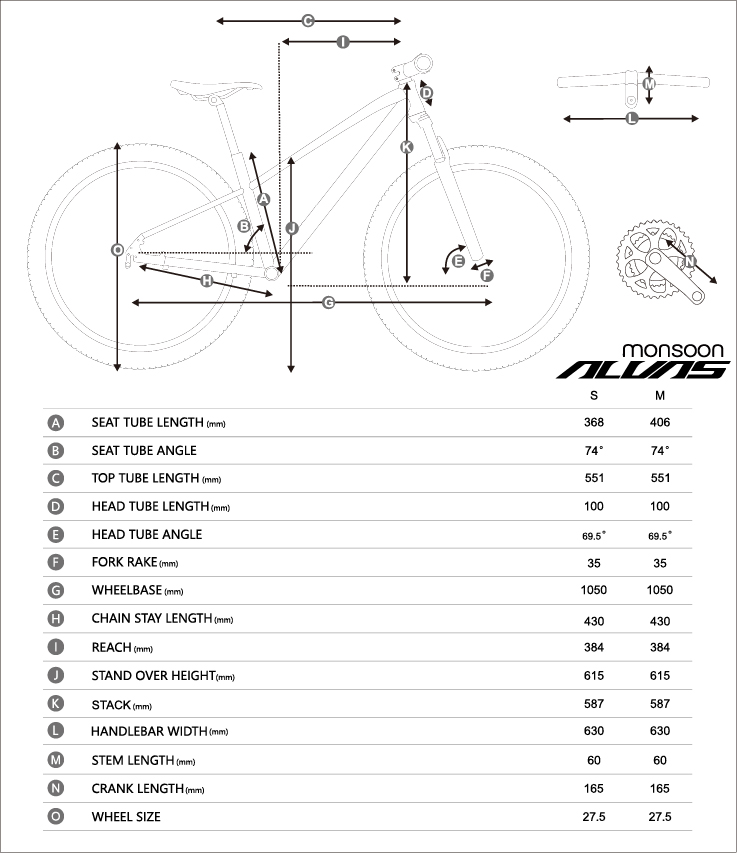

Geometry

Geometry
